Windows Virtual Desktop: Create Custom Windows 7 Image for WVD

Windows 7 is still very much alive in the enterprise, regardless if today is the last day Microsoft officially supports the legacy operating system. Announced in September 2019, Windows Virtual Desktop allows customers to run a fully managed VDI environment from Azure. The underlying technology is similar to Remote Desktop Service we have had in Windows Server since 2012 but the new Azure service abstracts all of the actual components which make it work. In other words you no longer have to manage RD Session Hosts etc with WVD.
Customers who have not yet managed to migrate away from Windows 7 are effectively exposed as new security updates will no longer be released for Windows 7 (unless you have a side agreement with Microsoft). However, when WVD was announced it was made clear that Windows 7 as an operating system would be supported in WVD deployments. In addition to this Microsoft are providing free Extended Security Updates (ESU) to customers running Windows 7 as part of their WVD deployment.
Although it is very straight forward to get a Windows Virtual Desktop deployment up and going a few steps are required if you would like you WVD Host Pools to spin out VM's running Windows 7. By default, it is only possible to create Host Pools with later operating systems such as Windows 10 Enterprise Multi-Session.
The process to make Windows 7 available to your WVD users is straight forward. You must create a customer "managed" image in Azure to be used as a reference template when creating a new WVD Host Pool.
The easiest way to do this is to deploy a new Windows 7 VM directly into Azure, install your apps and do any customisation, then convert it to an image. It is possible to do something similar if for whatever reason this won't work for you. The process would be to build a reference Windows 7 image on premise, probably on Hyper-V and run through the steps outlined in this guide https://docs.microsoft.com/en-us/azure/virtual-desktop/set-up-customize-master-image
Step 1: Create a new Windows 7 VM
This is very simple, use the poral to provision a new Virtual Machine, selecting Windows 7 Enterprise as the source Image.

Windows 7 Enterprise is not in the quick drop list of operating systems, if you search for it though you will find that there is a single image available.

Step 2: Install Apps and Make Customisations
Once the VM has deployed, login to it and install any applications, or make any customisations. It is worth noting that some applications need further configuration to make them user-ready at first launch, this would be addressed on a per-application basis.

Step 3: Run SysPrep to Generalise the VM
The SysPrep tool has been around in Windows since before WDS, I think it first appeared in Windows Server 2003 with the introduction of Remote Installation Service (RIS). Anyway it has not changed since, it is a tool used to generalise (strip any machine specific metadata away from a Windows installation) to aid Windows imaging. If you fail to SysPrep you VM images you will have nothing but boot problems and instability.
Open an elevated Command Prompt and cd C:\Windows\System32\sysprep

Select the options shown below Enter System Out-of-Box Experience (OOBE) and ensure Generalize is ticked. You also want to ensure the VM is powered off after this process has completed, if not it will boot and begin detecting all the hardware and run the OOBE process.

The SysPrep process should complete in a few minutes and leave you with a clean, generalised VM ready to be converted into an image.

Once the process has completed you will see the VM has entered the Stopped (Deallocated) state from the Azure Portal.

Step 4: Convert Windows 7 Image to Azure Image
Once we have the template ready click into the Virtual Machine from the Portal and click the Capture button. This will begin the process of converting the VM to an Azure Managed Image.

The wizard will walk you through creating a new image, ensure that you give it a descriptive name. The name of the Azure Managed Image will be required when creating your WVD Host Pool along with it's Resource Group. You will notice the option to delete the VM once the template has been created, in this example I have chosen to select this option. However, in production you might want the template in place so that you can do some online servicing of the image as time goes on.

Once the process completes you will have a new image available from the Portal. You can view all images if you search for Images in the global search bar.

Step 5: Create Windows Virtual Desktop Host Pool from Windows 7 Managed Image
The next step is to create WVD Host Pool, this can be done by searching for WVD in the poral and selecting Create.

You must have a number of infrastructure components in place before you can deploy a WVD Host Pool. This includes a WVD tenant, AD DS domain, AAD tenant with M365 licenses with all the associated networking. When you create a WVD Host Pool the creation must be able to join your WVD Session Hosts to an Active Directory domain.
From the wizard I have labelled the Host Pool "win7-personal" and selected the type as Personal. This outlines that users will maintain a 1:1 mapping with a dedicated Azure VM running Windows 7, which is created from this template. It is also possible to create Pool WVD Host Pools but there is limited value in doing this with Windows 7. By default, Windows 7 can only support 2 concurrent login sessions. This has been true of all desktop operating systems from Microsoft until the release of Windows 10 Enterprise Multi-Session, with is designed to allow pooled desktops to be created from a Windows 10 image.

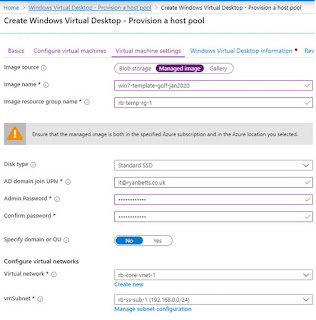

On the Virtual Machine Settings tab, instead of taking the default of selecting a Gallery image, click on Managed Image. This will then present two new fields for the Azure Managed Image name, along with the Resource Group that the image is in.
